Light-emitting diodes (LEDs) are playing increasingly important roles in analytical chemistry, from the final analysis stage to photoreactors for analyte conversion to actual fabrication of and incorporation in microdevices for analytical use. The extremely fast turn-on/off rates of LEDs have made possible simple approaches to fluorescence lifetime measurement. Although they are increasingly being used as detectors, their wavelength selectivity as detectors has rarely been exploited. From their first proposed use for absorbance measurement in 1970, LEDs have been used in analytical chemistry in too many ways to make a comprehensive review possible. Hence, we critically review here the more recent literature on their use in optical detection and measurement systems. Cloudy as our crystal ball may be, we express our views on the future applications of LEDs in analytical chemistry: The horizon will certainly become wider as LEDs in the deep UV with sufficient intensity become available.
Article metrics loading...
Full text loading...
Data & Media loading...
Download all Supplemental Material as a single PDF. Includes additional discussion, Supplemental Tables 1–2, and Supplemental Figures 1–5 (also reproduced below).

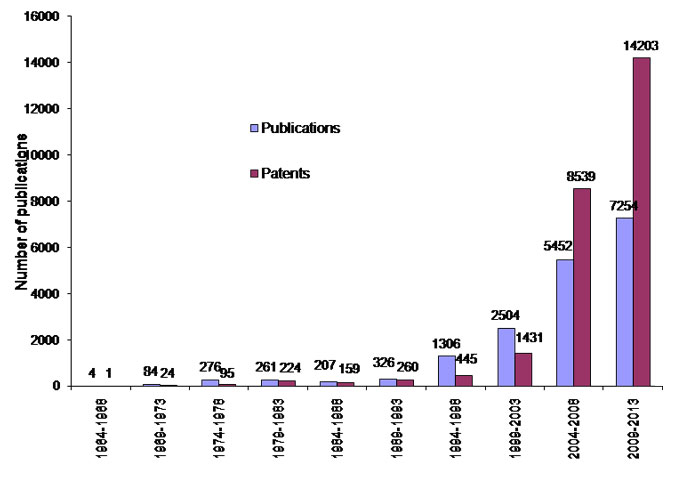

Supplemental Figure 1. Number of publications and patents for LEDs from 1964 till 2013.
Sci Finder Scholar database accessed April 08, 2013, search topic "Light emitting diode*".

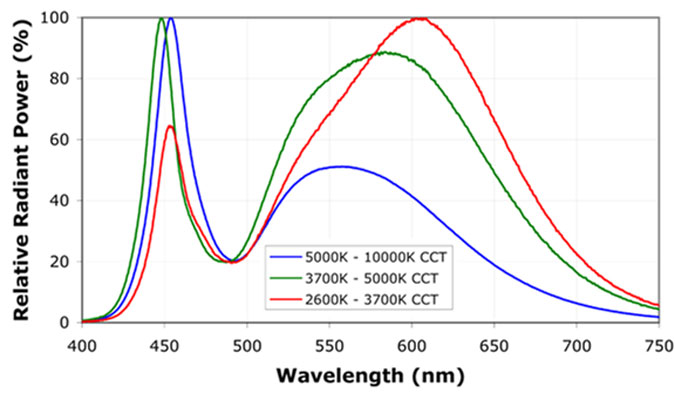

Supplemental Figure 2. Emission spectra of ‘white phosphorus’ LEDs: 3 different LEDs of varying light temperature: Blue: “Cool white”, Red: “Warm white” Green: intermediate white. Ordinate intensities are normalized to unity. Overall visible radiant power output typically decreases with “warmth”. Adapted from (4) with permission.
Supplemental Figure 3.Schematic diagram of the flow way for LED-CL aptasensor.
Adapted from (156) with permission.

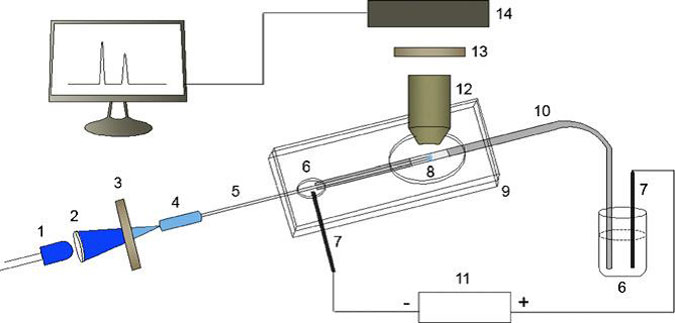

Supplemental Figure 4. Schematic of the CE-ICFO-LED-IFD system. (1) LED, (2) focusing lens (diameter: 6mm; focus: 10 mm), (3) bandpass filter 1, (4) GRIN lens (diameter 3.0 mm), (5) optical fiber, (6) buffer reservoirs, (7) Pt electrodes, (8) detection window, (9) organic glass chip, (10) separation capillary, (11) high-voltage power supply, (12) 60×microscope objective, (13) bandpass filter 2, and (14) PMT. Adapted from (168) with permission.

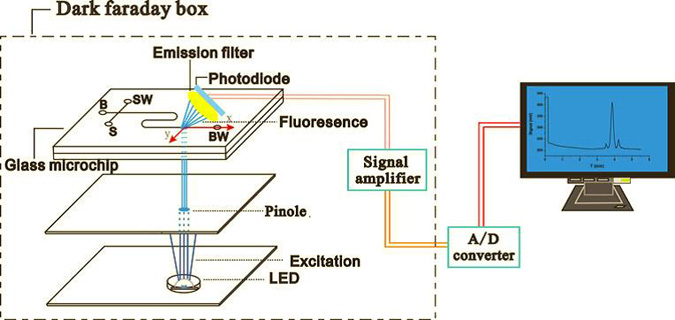

Supplemental Figure 5. The schematic of a microfluidic device integrated with an LED-IF detection system. Adapted from (176) with permission.
